> >MAC VIPER PERFORMANCE MARTIN
Second hand Sale! Lot of 2 MAC VIPER PERFORMANCE View larger Photo non contractuelle

MAC VIPER PERFORMANCE MARTIN

3844

Used

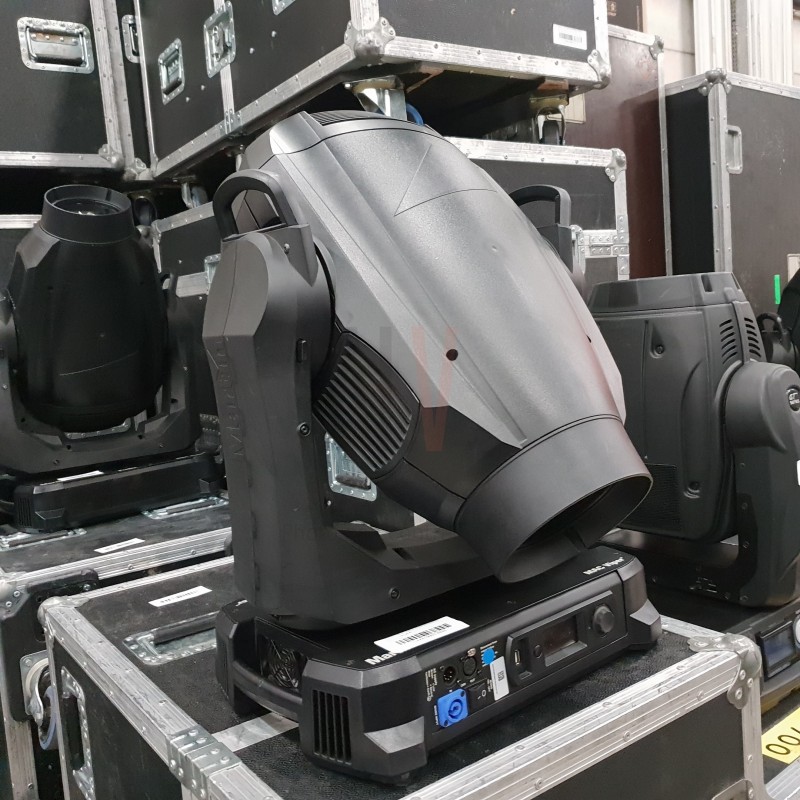

MARTIN MAC VIPER PERFORMANCE

Ostram HTI 1000 lamp moving head Lyre from fixed installation.

Delivered in flight case with omega and power supply

Functional machine

Revised and checked Good condition

More details

48 Items

IN 8 DAYS

1 550,00 €


1 550,00 €tax incl.
Contact us

More info

The MAC Viper Performance is a full-feature framing fixture that delivers an output and performance never before seen in a fixture this size or one using so little power. Unlike other fixtures in this class, the MAC Viper Performance does not forgo an iris or animation wheel – they are both included along with a framing system and rotating gobos.

The framing system consists of four shutter blades that can all individually adjust +/- 30° while the entire system can rotate +/- 55°. The exacting system can repeat each cue with great precision. When fully focused, gobos can be nicely framed with a soft edge. The MAC Viper Performance has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000-watt lamp.

  • 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom – Fast zoom with auto-linked focus
  • Four shutter blades individually adjust +/- 30° while the entire system rotates +/- 55°. Repeats cues with great precision

FEATURES

  • 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom – Fast zoom with auto-linked focus
  • Four shutter blades individually adjust +/- 30° while the entire system rotates +/- 55°. Repeats cues with great precision
  • Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
  • 5 rotating gobos – All glass gobos with only a slight focal separation to the framing system
  • Animation wheel with continuous bi-directional rotation
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • 7-slot color wheel – Static colors and correction filters for added color choice and bump effects
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects
  • Strobe – Diverse strobe effects using mechanical or electronic control or in combination
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option
  • 4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling

SPECIFICATIONS

  • PHYSICALLength:

    472 mm (18.6 in.) base
    566 mm (21.6 in.) head

    Width:

    472 mm (18.6 in.)
    335 mm (13.2 in.) base

    Height:

    731 mm (28.8 in.) head straight up
    748 mm (29.4 in.) maximum

    Weight: 37.9 kg (83.6 lbs.)Minimum center-to-center distance in side-by-side installation: 650 mm (25.6 in.)
    DYNAMIC EFFECTSColor mixing: CMY, independently variable 0 - 100%Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random colorAerial wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shakeGobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and directionIris: 0 - 100%Framing: Rotatable framing module, +/- 55°, with 4 individually controllable bladesPrism: Interchangeable 4-facet rotating prismFrost: VariableMechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackoutColor temperature control: CTO, variable 6000 - 3200 KDimming options: Choice of four dimming curvesZoom-focus linking system: 3-zoneZoom: MotorizedPan: 540°Tilt: 268°Position correction system: Absolute position monitoringFocus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)
    CONTROL AND PROGRAMMINGDMX channels: 32/4016-bit control: Dimming, rotating gobos, zoom, focus, pan and tiltSetting and addressing: Control panel with backlit graphic display and jog wheel or via DMXReceiver: Opto-isolated RS-485DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    OPTICSZoom range: 10-44° (1:4)Color temperature: 6000 KOutput: 26,000 lumens
    PHOTOMETRIC DATA

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    LAMPType: 1000 W short-arc dischargeCRI (Color rendering index): >85Average lifetime: 750 hoursSocket: PGJX36Ballast: ElectronicApproved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    SERVICE UTILITIESFixture identification: User-settable fixture ID number
    CONSTRUCTIONHousing: UV-resistant fiber-reinforced compositeColor: BlackReflector: Glass, cold lightProtection rating: IP20
    GOBOSSize: E27 (Size E, max. image diameter 27 mm)Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved)Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 +0/- 0.01 in.)Maximum image diameter: 27 mm (1.1 in.)Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
    INSTALLATIONMounting points: Eight quarter-turn locking pointsOrientation: AnyMinimum distance to combustible materials: 0.3 m (1.0 ft.)Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
  • CONNECTIONSAC power input: Neutrik PowerConDMX and RDM data in/out: 5-pin locking XLRUSB memory devices: USB host socket
    ELECTRICAL

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A
    Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
    Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V *
    Power Consumption
    Typical: 1225 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.

    THERMALCooling: Filtered forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
    ENVIRONMENTALRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 20 lm/wLWR*: 628 lm/kg (285 lm/lb)

    LWR = Lumen-to-Weight Ratio

    APPROVALSEU safety: EN 60598-2-17 (EN 60598-1), EN 62471EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241
    INCLUDED ITEMSLamp (installed): P/N 97010346Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001Safety and installation manual: P/N 35000258
    RELATED ITEMSMartin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    ACCESSORIESPower Input Cables: Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)    Power connectors: Power Connector PowerCON Female : P/N 91611794T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008Half-coupler (tube) clamp: P/N 91602005G-clamp (suspension with yoke vertically downwards only): P/N 91602003Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007Flightcase for 2 x MAC Viper: P/N 91510180
    SPARE PARTSOsram HTI 1000/PS Lok-it lamp: P/N 97010346Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    ORDERING INFORMATIONMAC Viper™ Performance in cardboard box: P/N 90233100MAC Viper™ Performance in double flightcase: P/N 90233110
    SHIPPING INFORMATIONIn cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 41 kg (90.4 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 350 kg (771.7 lbs.)
