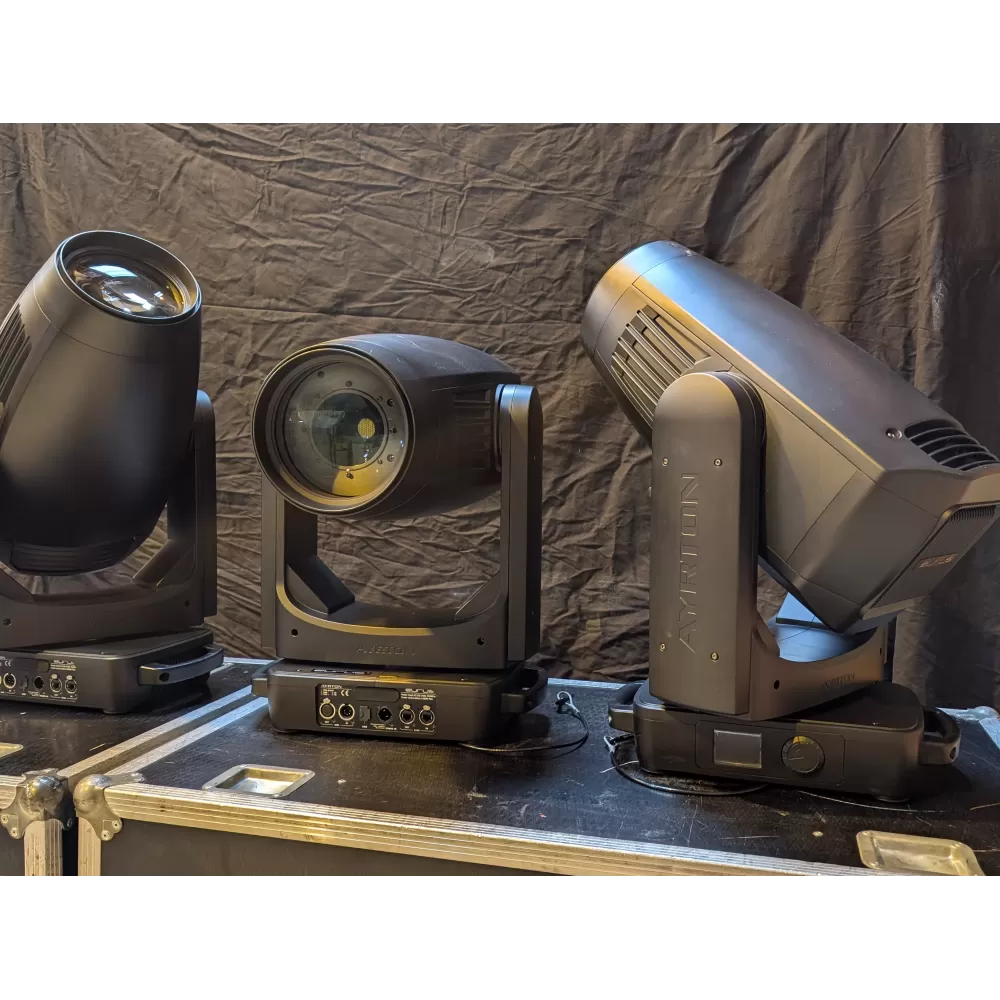

EURUS TC LYRE AYRTON

The Eurus is the ultimate spotlight in Ayrton's 6 series. Its 650W white LED source develops an incredible luminous flux of 36,000 lumens. It features a 4.5° to 50° zoom, a fully enclosed rotating 4-blade module, two gobo wheels, an animation wheel, a color wheel, two stackable prisms, and a pair of frost diffusers. Silent and comprehensive, the Eurus is the benchmark LED spotlight for theatrical and event applications.

Light Source Type: White LEDs 6200 K

Light Source

• Optical Output Luminous Flux: 25,000 lumens at 6200 K

• Source Luminous Flux: 32,000 lumens at 7000 K

• CRI: >90

• Nominal Life (L70): Up to 40,000 hours

• Flicker-free LED source, suitable for TV applications

Optics

• Motorized linear zoom from 4.5° to 50°

• High-resolution 13-lens optical system with an 11:1 ratio

• 170 mm front lens

• Anti-reflective tempered glass

Features

• Movements:

› 540° pan and 266° tilt

› 8- and 16-bit resolution

› Extremely precise positioning and very smooth movement thanks to high-precision microstepping motors

› Repositioning Automatic

• Colors:

› CMY Trichromy

› Variable CTO

› 7-Color Wheel

› 2 Independent CRI Correction Filters

• Gobos:

› 1 wheel of 7 indexable and rotating high-definition glass gobos

› 1 wheel of 11 fixed high-definition glass gobos

› Gobo Diameter: 27 mm / Image Diameter: 22 mm / Thickness: 1.1 mm

• Shutters:

› 4 indexable shutters with individual full closure

› Module Rotation +/- 60°

• Iris:

› Iris with several dynamic effects, aperture from 15% to 100%

• 2 Frosts: 1 light and 1 strong, linear and variable

• Effects:

› 1 continuous rotation and indexable graphic animation wheel Direction

› 2 combinable prisms:

1 indexable and rotating linear 4-facet prism

1 indexable and rotating circular 5-facet prism

› Adjustable speed stroboscopic effect from 1 to 25 flashes per second

• Software features:

› Choice of 3 DMX modes from 39 to 62 channels

› ArtNET and sACN protocols

› Integrated LumenRadio

› Standalone or master/slave mode

› 4 fan modes: Stage, Auto, Silent, and Super Silent

› 4 PWM source modes (1.2 kHz / 2.4 kHz / 16 kHz / 25 kHz)

› 2 dimming curves (linear and logarithmic)

› Overheating protection

• Hardware features:

› Local control via LCD display and rotary encoder

› Receiver LumenRadio Integrated Wireless DMX-RDM

› Fire-Resistant ABS PC Molded Cover (Class V0)

› Die-cast Aluminum

› Water-Cooled Cooling

› Carrying Handles

Connectivity

• 2 XLR5 In/Out

• 1 powerCON TRUE1 In

• 2 etherCON RJ45 In/Out

• 1 USB

Control Protocol(s): DMX512, RDM, ArtNET, sACN, LumenRadio

Power Supply

Electronic Power Supply with Active PFC

110-240 VAC, 50-60 Hz via powerCON True1

Power Consumption

1000 W Max

Operating Temperature: -10°C to 45°C

Cooling: Fan

Ingress Protection Rating: IP20

Chassis Color: Black

Dimensions: • W 445 x D 273 x H 743 mm

Weight 32.90 kg(Modifié)Restaurer la traduction d'origine
