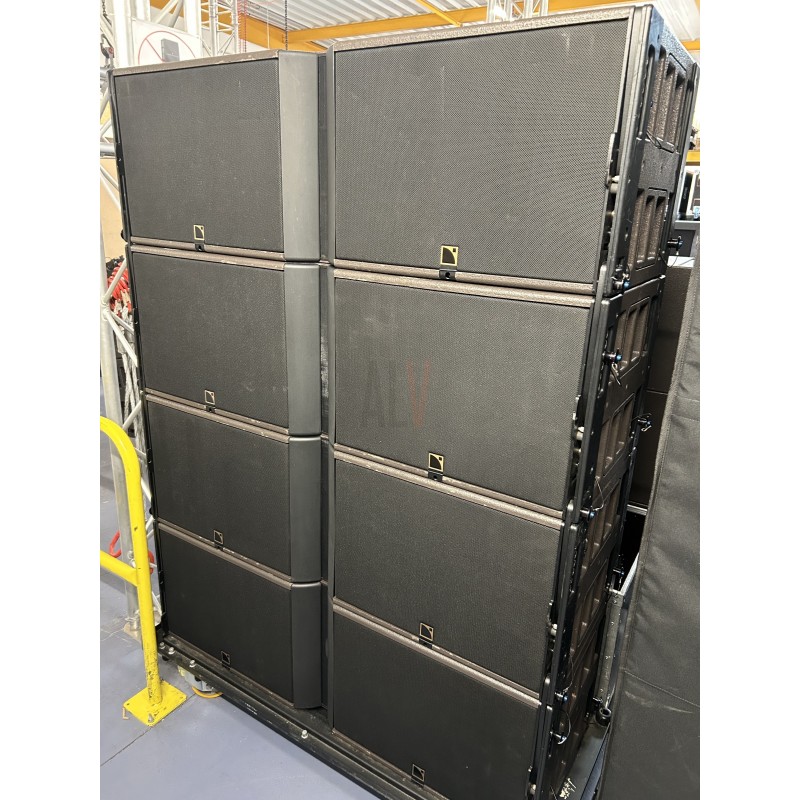

K1 + SB28 + LARAK ( LA8 ) FULL PACKAGE L-ACOUSTICS
Recipient :
* Required fields
or Cancel
Exceptional SPL, LF and throw capability for stadium and outdoor festivals
K transducer configuration for smooth horizontal radiation pattern
State of the art rigging system for laser-like accuracy and quick set-up
Dedicated LA-RAK touring system package
New preset library for “out of the box” results and easy tuning
Description
3-way full-range active WST enclosure, quad-amplied by LA8
Usable bandwidth (-10 dB) 35 Hz – 20 kHz ([K1])
Maximum SPL1
149 dB ([K1])
Nominal directivity horizontal: 90° symmetric
vertical: dependent upon the number of elements and the line source curvature
Transducers LF: 2 x 15″ neodymium
MF: 4 x 6.5″ neodymium, direct radiation
HF: 3 x 3″ diaphragm compression drivers
Acoustical load LF: bass-reex
MF: bass-reex
HF: DOSC waveguides
Nominal impedance LF: 2 x 8 Ω
MF: 8 Ω
HF: 8 Ω

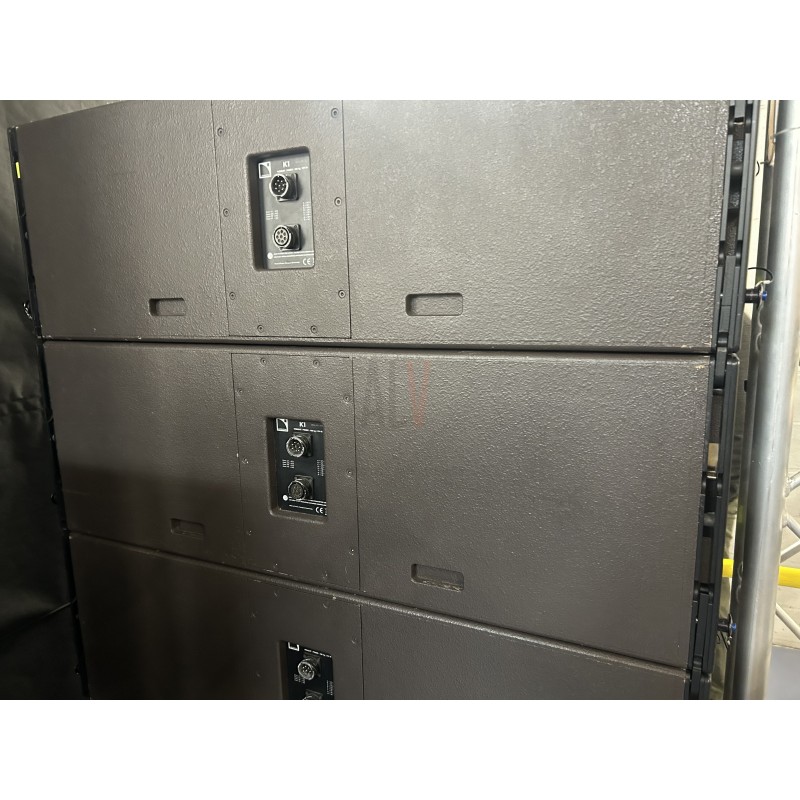

Connectors IN: 1 x 8-point PA-COM
LINK: 1 x 8-point PA-COM
Rigging and handling handles integrated in the cabinet
inter-enclosure angles: 0°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4° or 5°
Weight (net) 106 kg / 234 lb
Cabinet rst grade Baltic birch plywood, high density polyethylene
Front steel grill with anti-corrosion coating
acoustically neutral 3D fabric
Rigging components high grade steel with anti-corrosion coating
Finish grey brown RAL 8019
